High-performance laser distance sensor for large measurement distances in industrial applications
When measuring large distances up to 150 m in industrial environments, the optoNCDT ILR2250-100 is the preferred choice. This laser distance sensor has different measurement modes for optimal illumination of demanding surfaces. While maintaining a high signal stability, it provides precise measurement results.
Industrial laser distance sensor

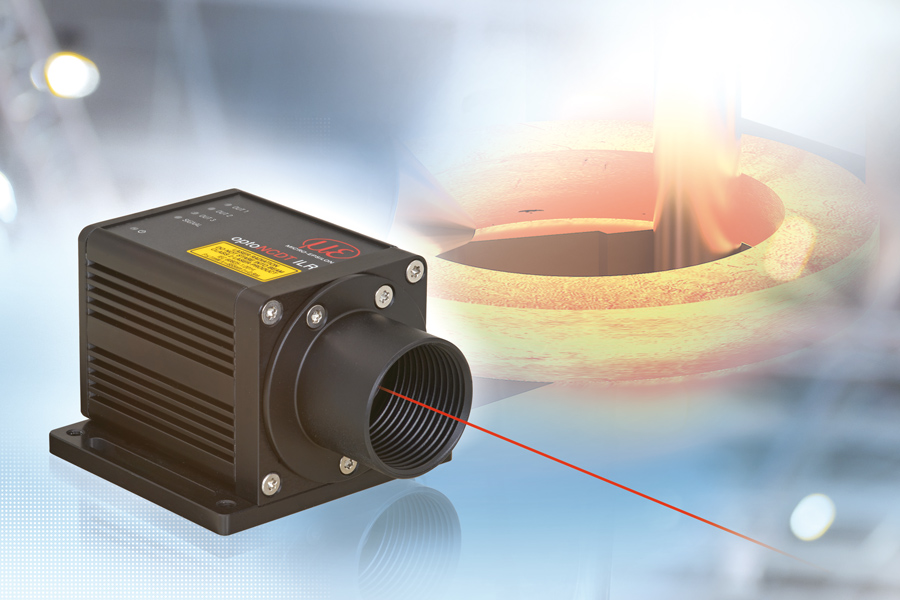

The optoNCDT ILR2250-100 laser distance sensor is designed for industrial applications. With an aluminium die-cast housing, measurements both outdoors and indoors are possible. Its compact design allows for this laser distance sensor to be installed in restricted spaces via an integrated mounting plate. For OEM purposes, the sensor can be adapted to the special requirements of the measurement task.
Ideal for numerous surfaces
The sensor offers outstanding signal stability on numerous surfaces which enables results down to millimetre accuracy. This innovative sensor technology is almost independent of the material. Therefore it’s suitable for versatile applications with paper, metals, plastics or textiles. With challenging dark or poorly reflecting measuring objects, the AUTO measurement mode ensures fast, automatic exposure control for a stable measurement signal.

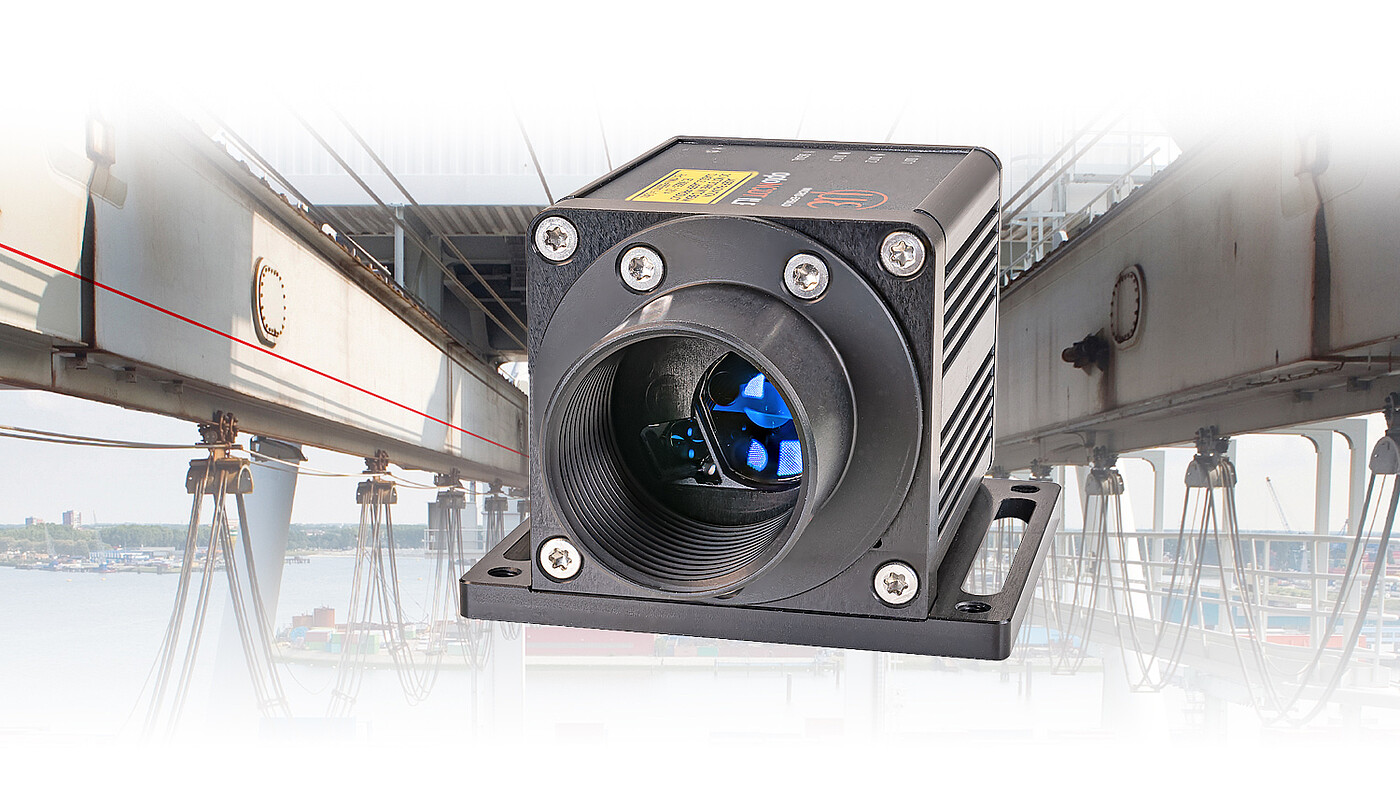

![](/fileadmin/_processed_/9/7/csm_optoncdt-ilr_33facf26b6.jpg)
Special features

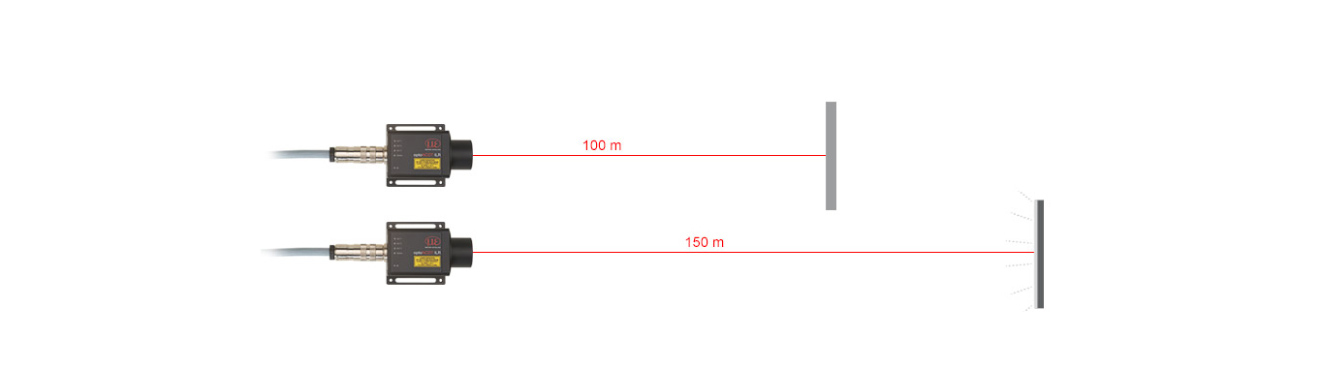

- High precision with a large measuring range up to 150 m
- High signal stability on numerous surfaces
- Compact design with low sensor weight
- Ideal price-performance for OEM
- Easy OEM adaptation possible due to configurable MEE software
- Robust aluminium die-cast housing
Ideal for versatile measurement tasks

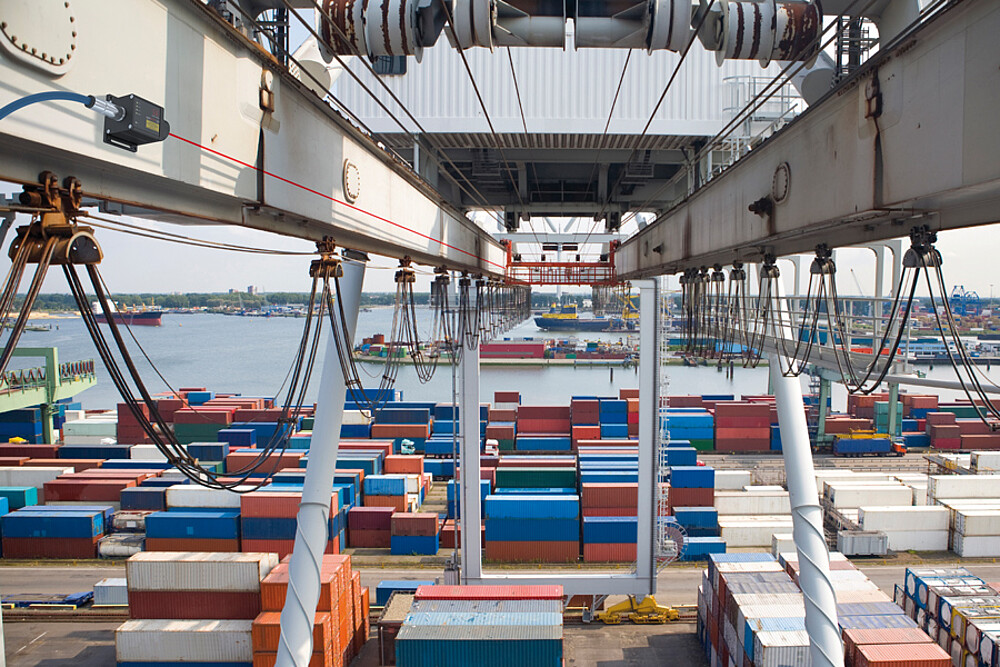

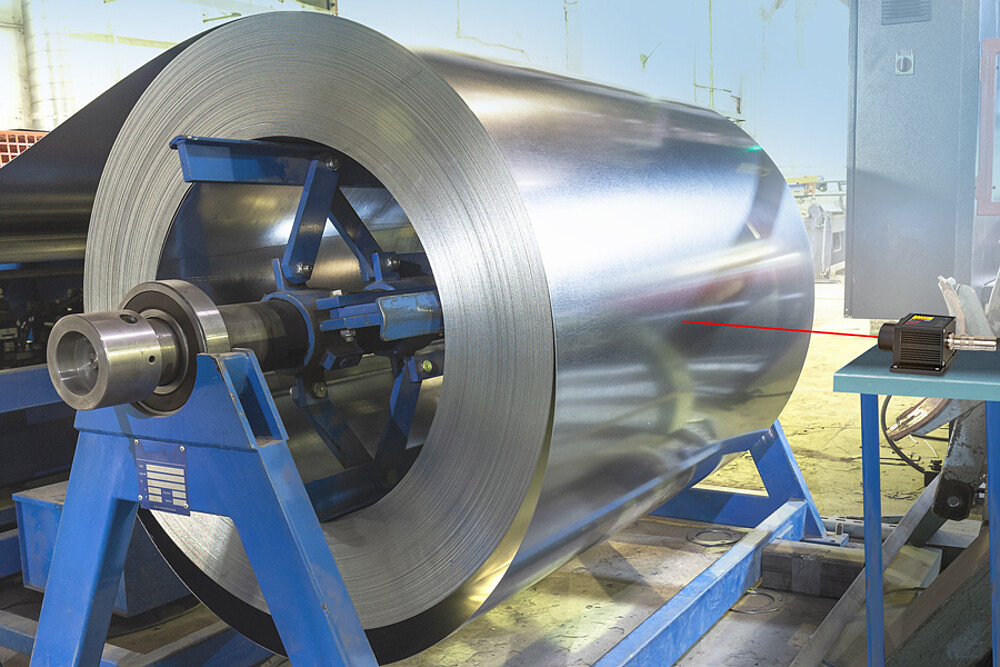

In factory automation, the sensor is used for measurement tasks with large distances up to 150 m. Its special characteristics make this sensor ideal for measurement tasks in the steel industry, transportation, logistics and conveyance technology.
